6  The francisella use case: a MaxQuant LFQ DDA dataset with technical replication

6.1 Introduction

In this chapter we show how to analyse LFQ data with technical replication. In the data analysis we have to acknowledge pseudo-replication, i.e. data for multiple technical replicates from the same biological repeat are correlated and we cannot treat these as independent repeats.

We will build upon the mixed model framework in msqrob2 to address this correlation by introducing a random effect for each biological repeat.

If you never used msqrob2, we suggest to familiarise yourself with the concepts chapter first.

6.2 Load packages

First, we load the msqrob2 package and additional packages for data manipulation and visualisation.

suppressPackageStartupMessages({
library("data.table")
library("msqrob2")
library("ggplot2")
library("ggrepel")
library("dplyr")
})

We also configure the parallelisation framework.

library("BiocParallel")
register(SerialParam())

6.3 Load data

6.3.1 Experimental context

A study on the facultative pathogen Francisella tularensis was conceived by (Ramond et al. 2015). F. tularensis enters the cells of its host by phagocytosis. The authors showed that F. tularensis is arginine deficient and imports arginine from the host cell via an arginine transporter, ArgP, in order to efficiently escape from the phagosome and reach the cytosolic compartment, where it can actively multiply. In their study, they compared the proteome of wild type F. tularensis (WT) to ArgP-gene deleted F. tularensis (knock-out, D8). For this exercise, we use a subset of the F. tularensis dataset where bacterial cultures were grown in biological triplicate and each biorep was run in technical triplicate on a nanoRSLC-Q Exactive PLUS instrument.

6.3.2 Getting the data

The data were searched with MaxQuant version 1.4.1.2. and are available on the PRIDE repository: PXD001584. We download the peptides file¹ from the github repository msqrob2data.

library("BiocFileCache")

Loading required package: dbplyr

Attaching package: 'dbplyr'

The following objects are masked from 'package:dplyr':

    ident, sql

bfc <- BiocFileCache()
pepFile <- bfcrpath(bfc, "https://raw.githubusercontent.com/statOmics/msqrob2data/refs/heads/main/dda/francisellaFull/peptides.txt")

After downloading the files, we can load the peptide table. Contrarily a PSM table, the peptide table is provided in a “wide format”, meaning that each row represents a single peptide and that each quantification column (that starts with "Intensity") represents a single sample.

peps <- fread(pepFile, check.names = TRUE, integer64 = "double")
quantcols <- grep("Intensity\\.", names(peps), value = TRUE)

Sequence	Amino.acid.before	First.amino.acid	Second.amino.acid	Second.last.amino.acid	Last.amino.acid	Amino.acid.after	A.Count	R.Count	N.Count	D.Count	C.Count	Q.Count	E.Count	G.Count	H.Count	I.Count	L.Count	K.Count	M.Count	F.Count	P.Count	S.Count	T.Count	W.Count	Y.Count	V.Count	U.Count	Length	Missed.cleavages	Mass	Proteins	GI.number	Leading.razor.protein	Protein.names	Unique..Groups.	Unique..Proteins.	Charges	PEP	Score	Experiment.1WT_20_2h_n3_1	Experiment.1WT_20_2h_n3_2	Experiment.1WT_20_2h_n3_3	Experiment.1WT_20_2h_n4_1	Experiment.1WT_20_2h_n4_2	Experiment.1WT_20_2h_n4_3	Experiment.1WT_20_2h_n5_1	Experiment.1WT_20_2h_n5_2	Experiment.1WT_20_2h_n5_3	Experiment.3D8_20_2h_n3_1	Experiment.3D8_20_2h_n3_2	Experiment.3D8_20_2h_n3_3	Experiment.3D8_20_2h_n4_1	Experiment.3D8_20_2h_n4_2	Experiment.3D8_20_2h_n4_3	Experiment.3D8_20_2h_n5_1	Experiment.3D8_20_2h_n5_2	Experiment.3D8_20_2h_n5_3	Intensity	Intensity.1WT_20_2h_n3_1	Intensity.1WT_20_2h_n3_2	Intensity.1WT_20_2h_n3_3	Intensity.1WT_20_2h_n4_1	Intensity.1WT_20_2h_n4_2	Intensity.1WT_20_2h_n4_3	Intensity.1WT_20_2h_n5_1	Intensity.1WT_20_2h_n5_2	Intensity.1WT_20_2h_n5_3	Intensity.3D8_20_2h_n3_1	Intensity.3D8_20_2h_n3_2	Intensity.3D8_20_2h_n3_3	Intensity.3D8_20_2h_n4_1	Intensity.3D8_20_2h_n4_2	Intensity.3D8_20_2h_n4_3	Intensity.3D8_20_2h_n5_1	Intensity.3D8_20_2h_n5_2	Intensity.3D8_20_2h_n5_3	Reverse	Contaminant	id	Protein.group.IDs	Mod..peptide.IDs	Evidence.IDs	MS.MS.IDs	Best.MS.MS	Oxidation..M..site.IDs
AAAEELDTR	K	A	A	T	R	K	3	1	0	1	0	0	2	0	0	0	1	0	0	0	0	0	1	0	0	0	0	9	0	974.4669	WP_003038655	gi|118497196	gi|118497196	hypothetical protein [Francisella tularensis]	yes	yes	1,2	0.0001253	59.35	NA	NA	1	1	NA	1	NA	1	NA	NA	1	NA	NA	NA	NA	NA	NA	NA	1.3295e+09	0	0	9290400	92996000	0	98059000	0	80803000	0	0	95433000	0	0	0	0	0	0	0			0	419	0	0;1;2;3;4;5;6;7;8;9;10;11;12;13;14;15;16;17;18	0;1;2;3;4;5;6;7;8;9;10;11;12;13;14;15;16;17;18	15
AAAGFVITASHNK	R	A	A	N	K	F	4	0	1	0	0	0	0	1	1	1	0	1	0	1	0	1	1	0	0	1	0	13	0	1285.6779	WP_003041237	gi|118498194	gi|118498194	phosphoglucosamine mutase [Francisella tularensis]	yes	yes	2	0.0000530	45.825	NA	1	NA	NA	NA	NA	NA	1	1	1	1	NA	1	1	1	1	NA	NA	1.6719e+08	0	20679000	0	0	0	0	0	17358000	13841000	12278000	10712000	0	9500700	11111000	8723500	8125200	0	0			1	1150	1	19;20;21;22;23;24;25;26;27;28;29;30;31;32;33	19;20;21;22;23;24;25;26;27;28;29;30;31;32;33	26
AAANEYELALAYSIEEVAPDLHK	K	A	A	H	K	Y	6	0	1	1	0	0	4	0	1	1	3	1	0	0	1	1	0	0	2	1	0	23	0	2516.2435	WP_003038915	gi|118497331	gi|118497331	glycine–tRNA ligase subunit beta [Francisella tularensis]	yes	yes	3	0.0000000	84.327	1	1	2	1	1	1	2	2	1	1	2	1	1	1	1	NA	1	1	5.5675e+08	28853000	28091000	30436000	19476000	22050000	20687000	36588000	28654000	7009100	14174000	8548000	7859200	14871000	11690000	4470500	0	4048100	3422300			2	513	2	34;35;36;37;38;39;40;41;42;43;44;45;46;47;48;49;50;51;52;53;54;55;56;57;58;59;60;61;62;63;64;65;66;67;68;69;70;71;72;73;74;75;76	34;35;36;37;38;39;40;41;42;43;44;45;46;47;48;49;50;51;52;53;54;55;56;57;58;59;60;61;62;63;64;65;66;67;68;69;70;71;72;73;74;75;76;77;78;79	39
AAANNPQLEAFK	K	A	A	F	K	K	4	0	2	0	0	1	1	0	0	0	1	1	0	1	1	0	0	0	0	0	0	12	0	1272.6463	WP_003038264	gi|118496879	gi|118496879	molecular chaperone HtpG [Francisella tularensis]	yes	yes	2	0.0000000	108.56	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1.4830e+10	339830000	420390000	393930000	235060000	381090000	360270000	255710000	311370000	271440000	225140000	289880000	282500000	209490000	223610000	219700000	169120000	178150000	170400000			3	199	3	77;78;79;80;81;82;83;84;85;86;87;88;89;90;91;92;93;94;95;96;97;98;99;100;101;102;103;104;105;106;107;108;109;110;111;112;113;114;115;116;117;118;119;120;121;122;123;124	80;81;82;83;84;85;86;87;88;89;90;91;92;93;94;95;96;97;98;99;100;101;102;103;104;105;106;107;108;109;110;111;112;113;114;115;116;117;118;119;120;121;122;123;124;125;126;127;128;129;130;131;132;133;134;135;136;137;138;139;140;141;142;143;144;145;146;147;148;149;150;151;152;153;154;155;156;157;158;159;160;161;162;163;164;165;166;167;168;169;170;171;172	159
AAASAGLVDEK	K	A	A	E	K	A	4	0	0	1	0	0	1	1	0	0	1	1	0	0	0	1	0	0	0	1	0	11	0	1030.5295	WP_003035781	gi|118497152	gi|118497152	delta-aminolevulinic acid dehydratase [Francisella tularensis]	yes	yes	2	0.0000951	67.385	1	NA	1	1	1	NA	1	1	1	1	1	1	1	1	NA	1	1	1	4.8209e+09	240280000	0	241890000	222250000	189930000	0	160440000	147230000	143340000	135910000	185740000	168620000	160240000	158000000	0	92542000	102350000	100090000			4	388	4	125;126;127;128;129;130;131;132;133;134;135;136;137;138;139;140;141;142;143;144;145;146;147;148;149;150;151;152;153;154;155	173;174;175;176;177;178;179;180;181;182;183;184;185;186;187;188;189;190;191;192;193;194;195;196;197;198;199;200;201;202;203	191
AAASLDLYSYPK	K	A	A	P	K	V	3	0	0	1	0	0	0	0	0	0	2	1	0	0	1	2	0	0	2	0	0	12	0	1297.6554	WP_003039212	gi|118497492	gi|118497492	phosphorylase [Francisella tularensis]	yes	yes	2	0.0125630	31.675	NA	1	1	NA	1	1	NA	NA	NA	NA	NA	NA	NA	1	NA	NA	NA	NA	1.3715e+08	0	31069000	31448000	0	27721000	28657000	0	0	0	0	0	0	0	18253000	0	0	0	0			5	624	5	156;157;158;159;160	204;205;206;207;208	205

We now extract the sample annotations. We will build a table where each row in the annotation table contains information for one sample (the table below shows the first 6 rows). This information is extracted from the sample names.

coldata <- data.frame(quantCols = quantcols) |>
  filter(grepl("_20_", quantCols) & grepl("_n\\d", quantCols)) |>
  mutate(genotype  = substr(quantCols, 12, 13),
         biorep  = paste0(genotype, "_", substr(quantCols, 21, 22)),
         run = 1:length(quantcols))

quantCols	genotype	biorep	run
Intensity.1WT_20_2h_n3_1	WT	WT_n3	1
Intensity.1WT_20_2h_n3_2	WT	WT_n3	2
Intensity.1WT_20_2h_n3_3	WT	WT_n3	3
Intensity.1WT_20_2h_n4_1	WT	WT_n4	4
Intensity.1WT_20_2h_n4_2	WT	WT_n4	5
Intensity.1WT_20_2h_n4_3	WT	WT_n4	6

6.3.3 The QFeatures data class

We combine the two tables into a QFeatures object.

(pe <- readQFeatures(
  peps, colData = coldata, fnames = "Sequence", name = "peptides"
))

Checking arguments.

Loading data as a 'SummarizedExperiment' object.

Formatting sample annotations (colData).

Formatting data as a 'QFeatures' object.

Setting assay rownames.

An instance of class QFeatures (type: bulk) with 1 set:

 [1] peptides: SummarizedExperiment with 10693 rows and 18 columns

We now have a QFeatures object with 1 set, containing r nrows(pe)[[1]] rows (peptides) and 18 columns (samples).

6.4 Data preprocessing

msqrob2 relies on the QFeatures data structure, meaning that we can directly make use of QFeatures’ data preprocessing functionality (see also the QFeatures documentation).

6.4.1 Encoding missing values

Peptides with zero intensities should be encoded using NA.

pe <- zeroIsNA(pe, "peptides")

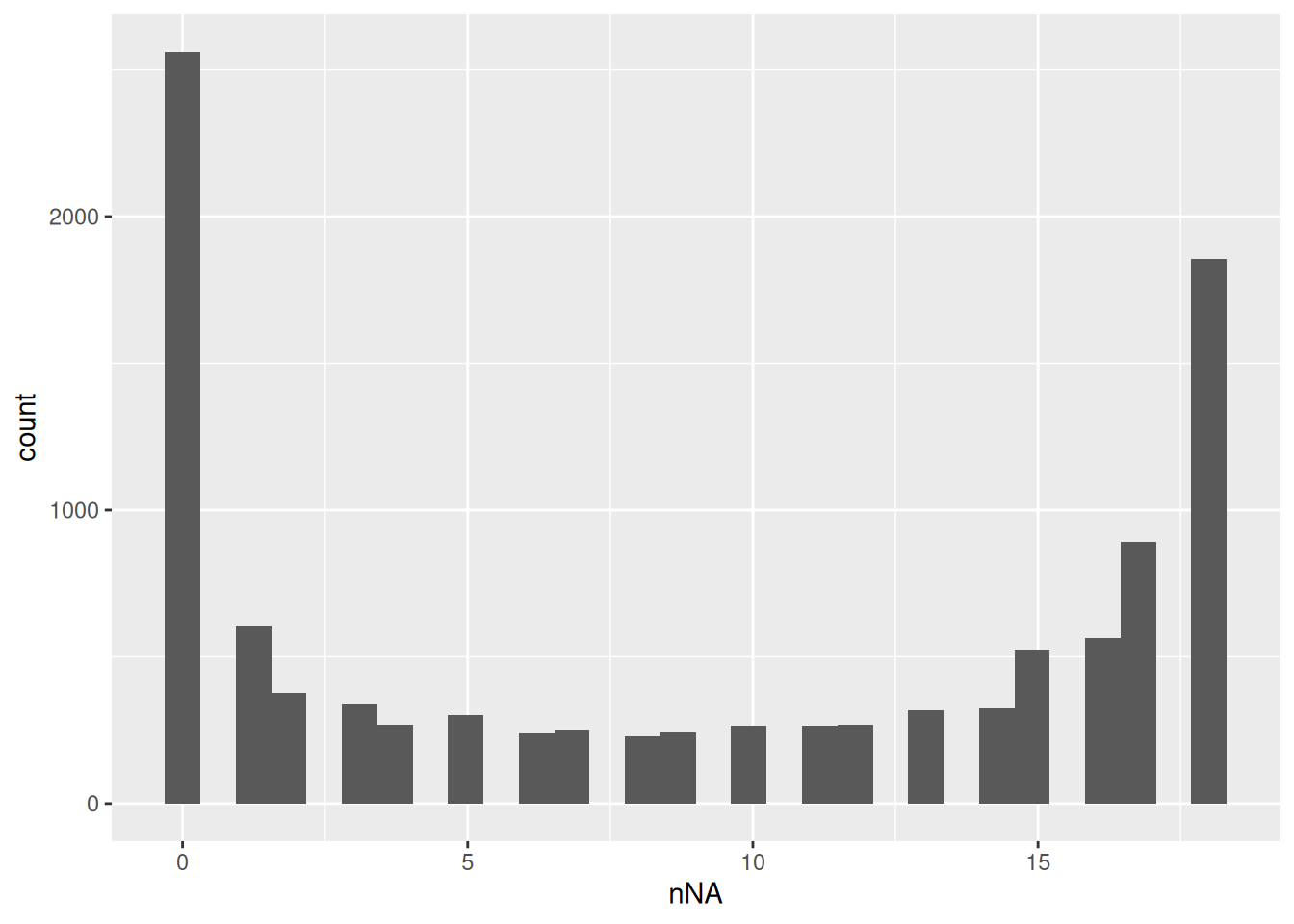

We calculate how many non zero intensities we have per peptide and this is often useful for filtering.

naResults <- nNA(pe, "peptides")
data.frame(naResults$nNArows) |>
  ggplot() +
  aes(x = nNA) +
  geom_histogram()

`stat_bin()` using `bins = 30`. Pick better value `binwidth`.

6.4.2 Peptide filtering

We filter peptides based on 3 criteria (see [PSM filtering]).

1. Remove failed protein inference

We remove peptides that could not be uniquely mapped to a protein.

pe <- filterFeatures(pe,
  ~ Proteins != "" & ## Remove failed protein inference
    !grepl(";", Proteins)) ## Remove protein groups

'Proteins' found in 1 out of 1 assay(s).

2. Remove reverse sequences and contaminants

We now remove the contaminants and peptides that map to decoy sequences. These features bear no information of interest and will reduce the statistical power upon multiple test adjustment.

pe <- filterFeatures(pe, ~ Reverse != "+" & Contaminant != "+")

'Reverse' found in 1 out of 1 assay(s).'Contaminant' found in 1 out of 1 assay(s).

3. Drop peptides that were only identified in a single biorepeat

Note, that in experiments without technical repeats we filter on the number of samples in which a peptide is picked up (this is typically performed using filterNA()). Here, we will require that a peptide is picked up in at least two biorepeats. We compute the number of biorepeats that were observed for each peptide (that is the number of biorepeats that contain at least one observed value).

rowData(pe[["peptides"]])$nNonZeroBiorep <- apply(
  assay(pe[["peptides"]]), 1, function(intensity)
    pe$biorep[!is.na(intensity)] |>
    unique() |>
    length()
)

We keep peptides that are observed in at least two biorepeats.

(pe <- filterFeatures(pe, ~ nNonZeroBiorep >= 2))

'nNonZeroBiorep' found in 1 out of 1 assay(s).

An instance of class QFeatures (type: bulk) with 1 set:

 [1] peptides: SummarizedExperiment with 7542 rows and 18 columns

We keep 7542 peptides upon filtering.

6.4.3 Standard preprocessing workflow

We can now prepare the data for modelling. The workflow ensures the data complies to msqrob2’s requirements:

1. Intensities are log-transformed.

pe <- logTransform(pe, base = 2, i = "peptides", name = "peptides_log")

2. Normalisation with the Median of Ratios method.

pe <-
  sweep(pe,
        MARGIN = 2,
        STATS = nfLogMedianOfRatios(pe,"peptides_log"),
        i = "peptides_log",
        name = "peptides_norm") #4. Subtract log2 norm factor column-by-column (MARGIN = 2)

This function aims to calculate norm factors on a log scale,
          the input data are assumed to be on the log-scale!

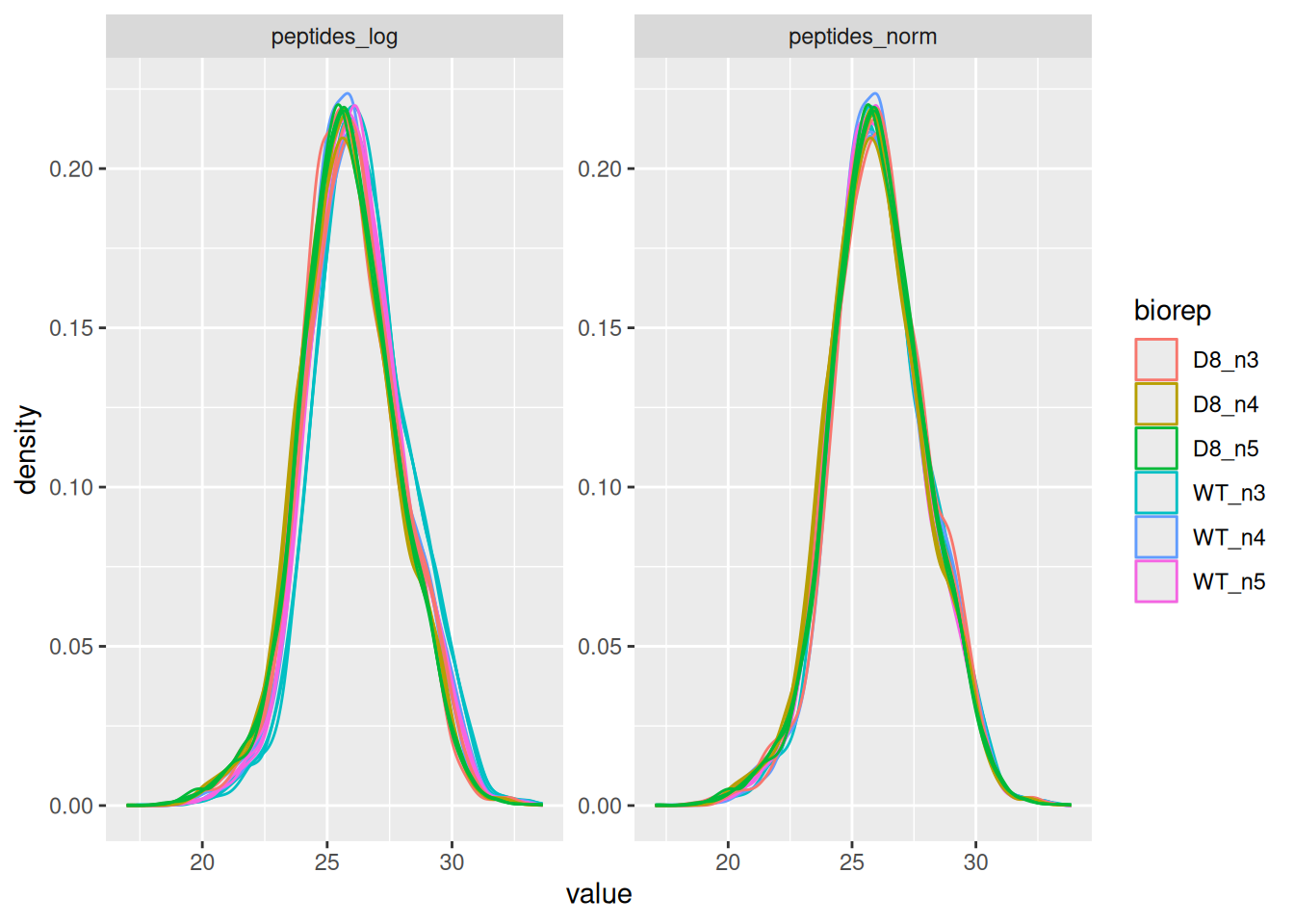

Upon the normalisation the density curves should be nicely centred. To confirm this, we will plot the intensity distributions for each biorepeat (francisella culture). longForm() seamlessly combines the quantification and annotation data into a table suitable for ggplot2 visualisation. We also subset the object with the data before and after normalisation.

longForm(pe[, , c("peptides_log", "peptides_norm")], colvar = "biorep") |>
  ggplot() +
  aes(x = value, group = colname, color = biorep) +
  geom_density() +
  facet_wrap(~ assay, scale = "free")

Warning: 'experiments' dropped; see 'drops()'

harmonizing input:
  removing 18 sampleMap rows not in names(experiments)

Warning: Removed 80826 rows containing non-finite outside the scale range
(`stat_density()`).

3. Summarisation to protein level.

We use the robust summary approach to infer protein-level data from peptide-level data, accounting for the fact that different peptides have ionisation efficiencies hence leading to different intensity baselines.

pe <- aggregateFeatures(
  pe, i = "peptides_norm", fcol = "Proteins",
  fun = MsCoreUtils::robustSummary, na.rm = TRUE, name = "proteins"
)

Your quantitative and row data contain missing values. Please read the
relevant section(s) in the aggregateFeatures manual page regarding the
effects of missing values on data aggregation.

Aggregated: 1/1

6.5 Data exploration

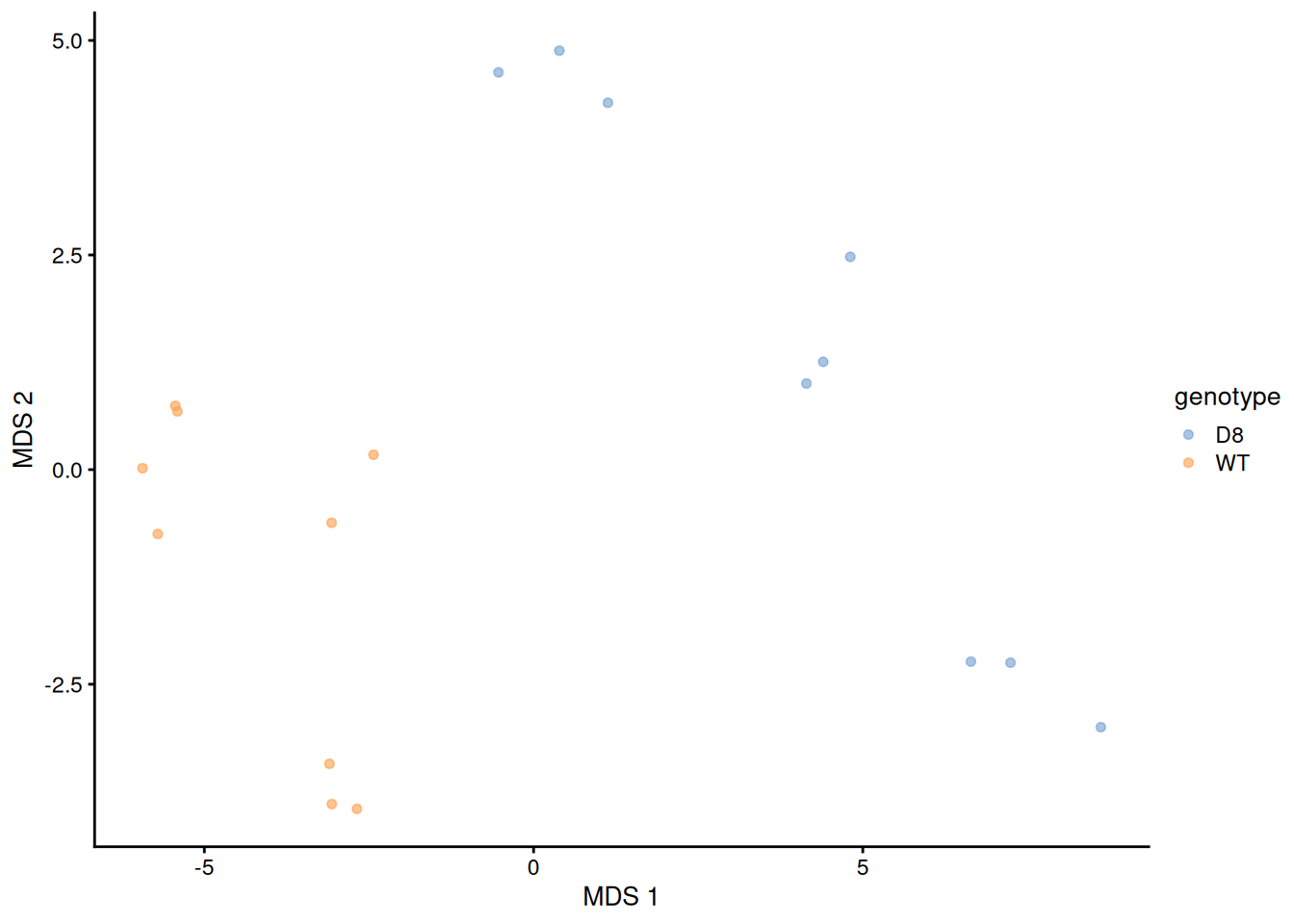

We will explore the main sources of variation in the data using MDS.

library("scater")

Loading required package: SingleCellExperiment

Loading required package: scuttle

getWithColData(pe, "proteins") |>
  as("SingleCellExperiment") |>
  runMDS(exprs_values = 1) |>
  plotMDS(colour_by = "genotype")

Warning: 'experiments' dropped; see 'drops()'

Note that the samples upon robust summarisation show a clear separation according to the genotype in the first dimension of the MDS plot.

6.6 Data modelling

The preprocessed data can now be modelled to answer biologically relevant questions. As described above, samples (bacterial cultures) originate from either a wildtype (WT) or a ArgP knockout (D8). Each genotype was cultured in biological triplicate. Each biological triplicate was acquired in technical triplicate, leading to \(2 \times 3 \times 3 = 18\) samples. In this context, we are interested in the effects of genotype on the protein abundances.

The table below confirms we have a balanced design for each condition and biological triplicate.

table(genotype = pe$genotype, biorep = pe$biorep)

        biorep
genotype D8_n3 D8_n4 D8_n5 WT_n3 WT_n4 WT_n5
      D8     3     3     3     0     0     0
      WT     0     0     0     3     3     3

6.6.1 Sources of variation

We will model two sources of variation:

1. Genotype: we model the source of variation induced by the experimental group of interest as a fixed effect. Fixed effects are effect that are considered non-random, i.e. the treatment effect is assumed to be the same and reproducible across repeated experiments, but it is unknown and has to be estimated. We will include genotype as a fixed effect that models the fact that a change in genotype can induce changes in protein abundance.

2. Biological replicate effect: the experiment involves biological replication as the bacterial cultures are repeated. Replicate-specific effects occurs due to uncontrollable factors, such as variation in the number of bacterium seeded, position in the incubator, transient contamination,… Two bacterial cultures will never provide exactly the same sample material. These effects are typically modelled as random effects which are considered as a random sample from the population of all possible mice and are assumed to be i.i.d normally distributed with mean 0 and constant variance, \(u_{biorep} \sim N(0,\sigma^{2,\text{b}})\). The use of random effects thus models the correlation in the data, explicitly. We expect that intensities from the same bacterial culture are more alike than intensities between cultures.

Hence, the variance-covariance matrix of the 18 protein abundance values \(\mathbf{Y}=(y_{wt\_n3,1}, y_{wt\_n3,2}, y_{wt\_n3,3}, y_{wt\_n4,1} \ldots y_{d8\_n5,1}, y_{d8\_n5,2}, y_{d8\_n5,3})^T\) is assumed to have a block diagonal structure, with as variance \(\sigma_b^2 + \sigma_\epsilon^2\) and the covariance between protein abundance values of technical replicates from the same biorepeat equals \(\sigma_b^2\) (with _^2 the variance of the residuals). More details on mixed models can be found in the advanced chapter.

We model the protein level expression values using msqrob2. msqrob2 workflows rely on linear mixed models, which are models that can estimate and predict fixed and random effects, respectively. The fixed effect are estimated using robust regression to avoid that outliers distort the statistical outcome.

Note, that we cannot use ridge regression here to further stabilize the parameter estimation of the fixed effects. Ridge regression typically performs better the more slope parameters there are in the mean model (more complex designs). Here, the fixed effect consists of the genotype: knockout (D8) vs wild type (WT). By default the first group (D8) will become the reference group and its effect will be absorbed in the intercept of the model. Hence, only a single slope term is needed to model the average difference between D8 and WT (See Section Statistical inference below).

Now we have identified the sources of variation in the experiment, we can define a model.

model <- ~ genotype + ## (1) fixed effect for genotype
  (1 | biorep)  ## (2) random effect for biological replicate (culture)

6.6.2 Estimate the model

We estimate the model with msqrob() (see the modelling section). Recall that variables defined in model are automatically retrieved from the colData (i.e. "genotype", and "biorep"). Note, that msqrob2 also features ridge regression for stabilising the parameter estimation, but it is irrelevant in this context as the genotype factor only has 2 levels (WT and D8), so ridge regression . We will therefore leave the ridge regression disabled (default).

pe <- msqrob(pe, i = "proteins", formula = model, robust = TRUE)

6.7 Statistical inference

Once the models are estimated, we can start answering biological questions by performing Statistical inference. We must convert the biological question “does the bacterial genotype affect the protein intensities?” into a statistical hypothesis. In other words, we must convert this question in a combination of the model parameters, also referred to as a contrast. To aid defining contrasts, we will visualise the experimental design using the ExploreModelMatrix package. Note that with ExploreModelMatrix we can only visualise fixed effects part of the model. This is fine as the mean protein abundances can only systematically differ from each other according to the genotype (fixed effect).

library("ExploreModelMatrix")
vd <- VisualizeDesign(
    sampleData =  colData(pe),
    designFormula = ~ genotype,
    textSizeFitted = 4
)
vd$plotlist

[[1]]

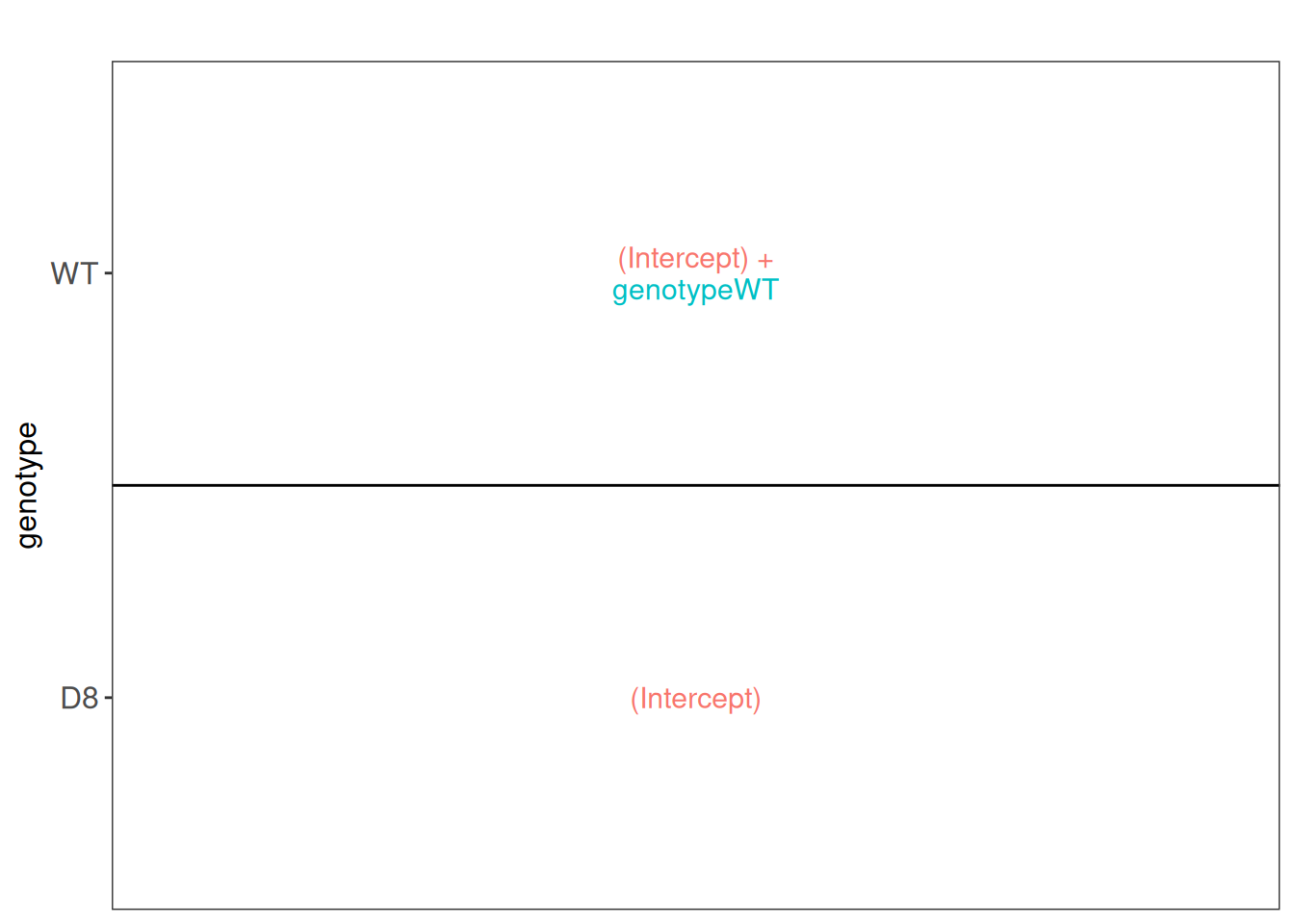

This plot shows that the average \(\log_2\) protein intensity for the D8 group is modelled by (Intercept), and the the average \(\log_2\) protein intensity for the WT group is modelled by (Intercept) + genotypeWT.

6.7.1 Hypothesis testing

Hence we can translate the research hypothesis that there is an effect of the genotype on the protein abundance to the average log2 fold change (\(\log_2 FC\)) between the WT and D8 groups, which boils down to (Intercept) + genotypeWT - (Intercept), and equals the genotypeWT parameter. The null hypothesis of the hypothesis test for this contrast is that the average \(\log2 FC\) between D8 knock-out and WT is zero, or in other words that the genotypeWT parameter is zero.

hypothesis <- "genotypeWT = 0"

We next use makeContrast() to build the contrast matrix.

(L <- makeContrast(hypothesis, parameterNames = "genotypeWT"))

           genotypeWT
genotypeWT          1

In this case, the contrast matrix is trivial, but it becomes a matrix but for more complex designs. We can now test our null hypothesis:

pe <- hypothesisTest(pe, i = "proteins", contrast = L)

Let us retrieve the result table from the rowData. Note that the hypothesis testing results are stored in rowData columns named after the column names (here genotypeWT) of the contrast matrix L.

inference <- msqrobCollect(pe[["proteins"]],L)
head(inference)

                              logFC         se       df          t        pval
genotypeWT.WP_003013731  0.08607313 0.13621104 14.50532  0.6319101 0.537278521
genotypeWT.WP_003013860 -0.24361570 0.96214480  4.85329 -0.2532007 0.810487128
genotypeWT.WP_003013909 -0.29604787 0.06875301 14.99761 -4.3059621 0.000624487
genotypeWT.WP_003014068  0.11520522 0.15933068 14.13273  0.7230574 0.481440668
genotypeWT.WP_003014122  0.20050168 0.11486691 17.84483  1.7455129 0.098089921
genotypeWT.WP_003014123  0.11735634 0.14938196 14.58933  0.7856125 0.444666733
                            adjPval   contrast      feature
genotypeWT.WP_003013731 0.741137927 genotypeWT WP_003013731
genotypeWT.WP_003013860 0.910663416 genotypeWT WP_003013860
genotypeWT.WP_003013909 0.006894089 genotypeWT WP_003013909
genotypeWT.WP_003014068 0.695345006 genotypeWT WP_003014068
genotypeWT.WP_003014122 0.253759308 genotypeWT WP_003014122
genotypeWT.WP_003014123 0.667122841 genotypeWT WP_003014123

Notice that some rows contain missing values. This is because data modelling resulted in a fitError for some proteins, probably because not enough data was available for model fitting due to missing values in the quantitative data (see how to deal with fitErrors).

6.7.2 Volcano-plot

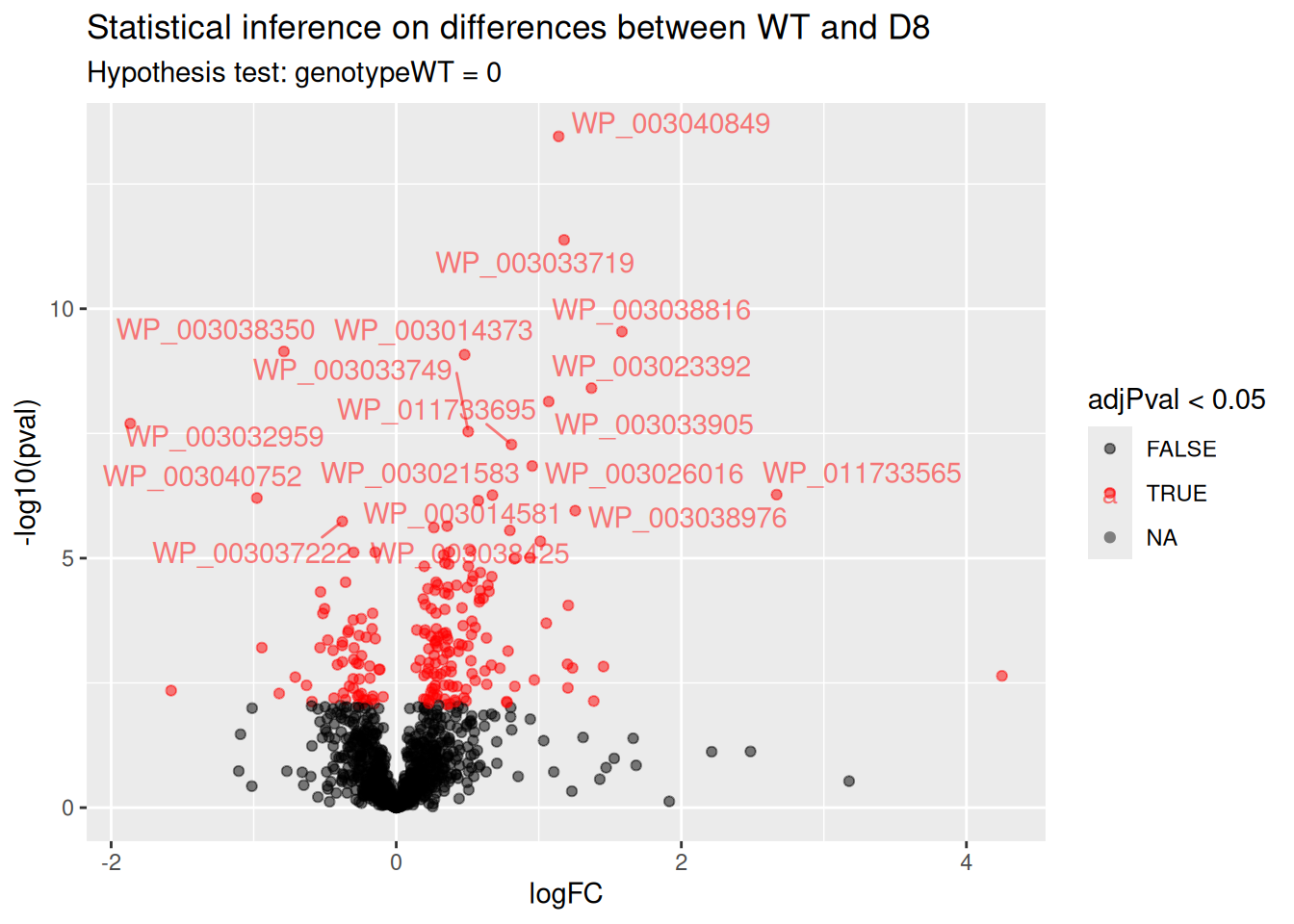

Volcano plots are straightforward to generate from the inference table above. We also use ggrepel to annotate the 20 most significant proteins.

plotVolcano(inference) +
  geom_text_repel(data = slice_min(inference, adjPval, n = 20),
                  aes(label = feature)) +
  ggtitle("Statistical inference on differences between WT and D8",
          paste("Hypothesis test:", colnames(L), "= 0"))

Warning: ggrepel: 2 unlabeled data points (too many overlaps). Consider
increasing max.overlaps

Note, that 195 proteins are found to be differentially abundant.

6.7.3 Heatmap

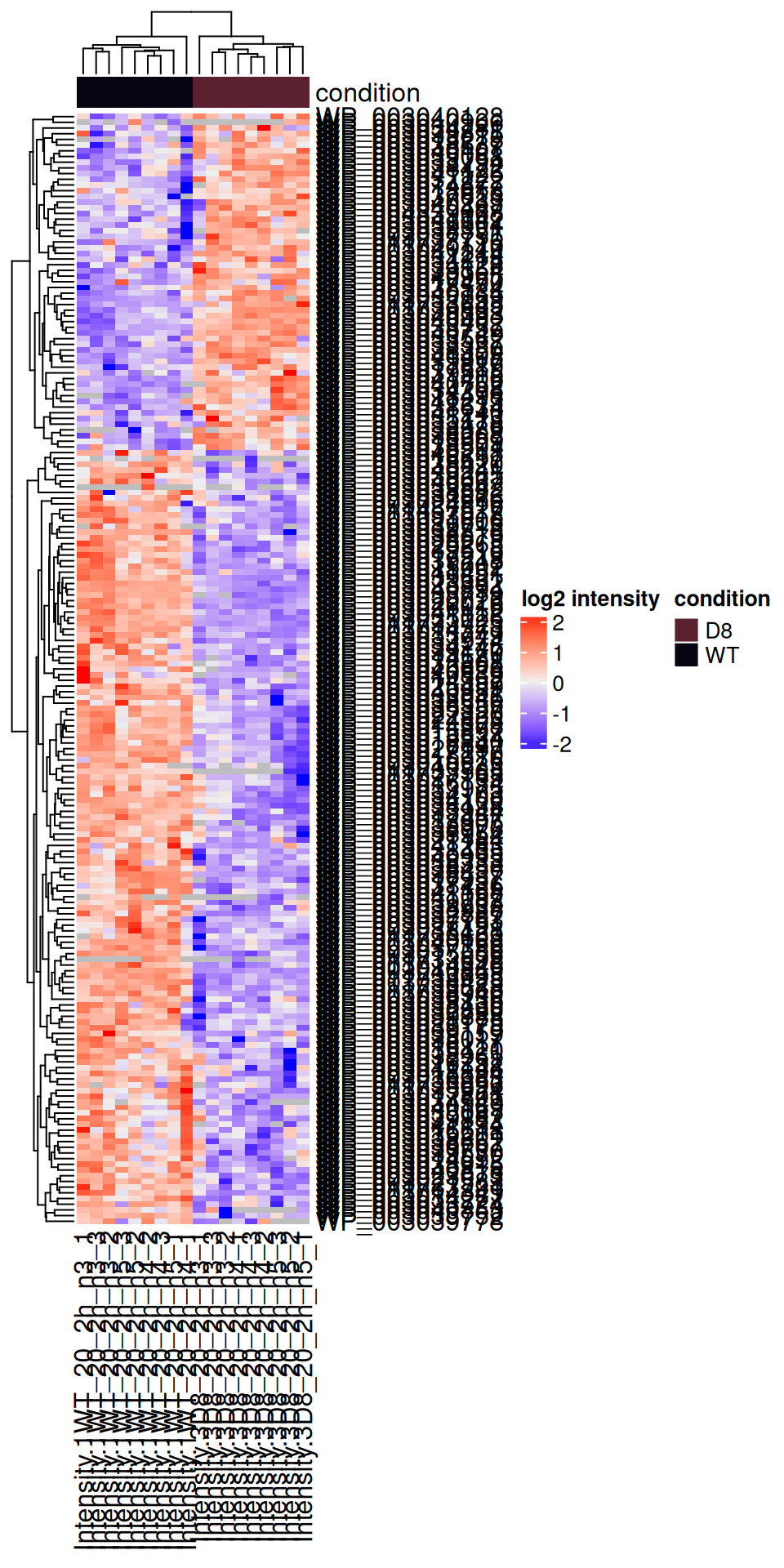

We can also build a heatmap for the significant proteins which are obtained by filtering the inference table. We first retrieve the data with proteins that are differentially abundant between the WT and the D8 genotype.

sigNames <- inference$Protein[!is.na(inference$adjPval) & inference$adjPval < 0.05]
se <- getWithColData(pe, "proteins")[sigNames, ]

Warning: 'experiments' dropped; see 'drops()'

We then plot the protein-wise standardised data as an annotated heatmap.

quants <- t(scale(t(assay(se))))
library("ComplexHeatmap")

Loading required package: grid

========================================
ComplexHeatmap version 2.26.1
Bioconductor page: http://bioconductor.org/packages/ComplexHeatmap/
Github page: https://github.com/jokergoo/ComplexHeatmap
Documentation: http://jokergoo.github.io/ComplexHeatmap-reference

If you use it in published research, please cite either one:
- Gu, Z. Complex Heatmap Visualization. iMeta 2022.
- Gu, Z. Complex heatmaps reveal patterns and correlations in multidimensional
    genomic data. Bioinformatics 2016.


The new InteractiveComplexHeatmap package can directly export static
complex heatmaps into an interactive Shiny app with zero effort. Have a try!

This message can be suppressed by:
  suppressPackageStartupMessages(library(ComplexHeatmap))
========================================

annotations <- columnAnnotation(
  condition = se$genotype
)
set.seed(1234) ## annotation colours are randomly generated by default
Heatmap(
 quants, name = "log2 intensity",
 top_annotation = annotations
)

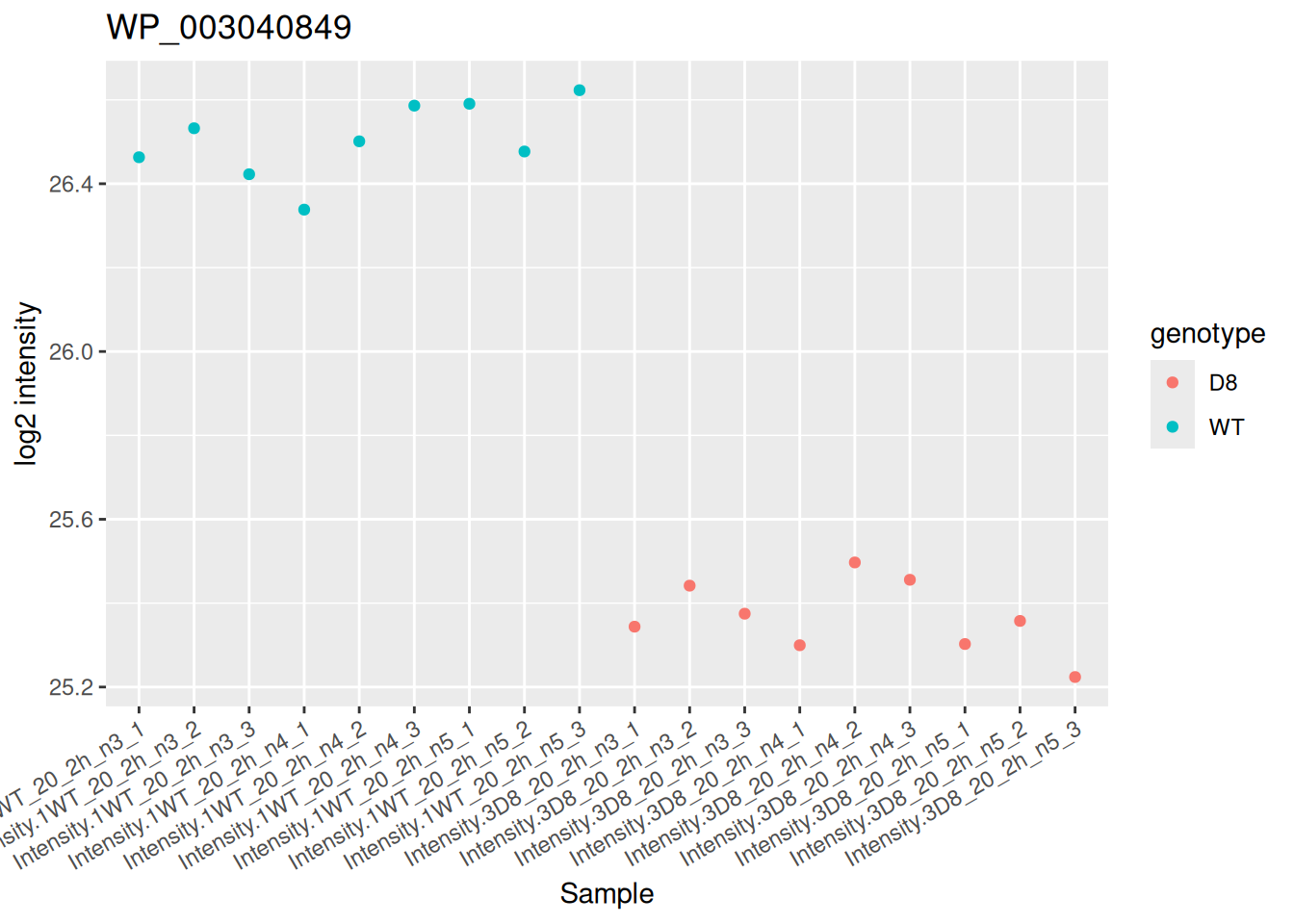

6.7.4 Detail plots

Let us visualise the most significant protein. We perform this with a little data manipulation pipeline:

1. Identify the target protein with largest logFC.
2. We use the QFeatures subsetting functionality to retrieve all data related to the target protein, focusing on the proteins set that contains the preprocessed data used for modelling.
3. We use longForm() to convert the object into a table suitable for plotting.
4. We remove missing values for plotting.
5. Plot the data with ggplot2.

targetProtein <- inference$feature[which.min(inference$adjPval)] #1
pe[targetProtein, , "proteins"] |> #2
  longForm(colvars = "genotype") |>  #3
  data.frame() |>
  filter(!is.na(value)) |> #4
  ggplot() + #5
  aes(x = colname,
      y = value) +
  geom_point(aes(colour = genotype)) +
  labs(x = "Sample", y = "log2 intensity") +
  ggtitle(targetProtein) +
  theme(axis.text.x = element_text(angle = 30, hjust = 1))

Warning: 'experiments' dropped; see 'drops()'

harmonizing input:
  removing 54 sampleMap rows not in names(experiments)

6.8 Conclusion

In this chapter, we illustrated the analysis of a label-free proteomics data set with technical replication. We followed the workflow described in the previous chapters with minimal changes, with a few exceptions.

First, we removed peptides that were missing across biological replicates instead of across all samples. This filtering strategy uses the experimental design to better define interesting features. Indeed, peptides that are only found in a single francisella culture batch bears no interesting biological information. The QFeatures framework is amenable for this custom filtering.

Second, we could not perform ridge regression because the fixed effects contained only two levels. However, it is possible to disable ridge regression within mssqrob() thanks to the argument ridge = FALSE.

Third, this data set has a more complex experimental design since there each biological replicate has been acquired in technical triplicate. Hence, we had to model

• the variation according to the treatment, effect of interest and modelled using a fixed effect
• variation between biological repeats, random effect as the francisella cultures will change each time we repeat the experiment, and
• technical variability, run to run variability and other sources of technical variability which are lumped in the residual variance.

Note, that we could have performed the differential abundance analysis at the protein-level using ion- or peptide-level models, i.e. by using the msqrobAggregate on the peptide_log assay with a formula peptideModel <- ~ genotype + (1|biorep) + (1|run) + (1|Sequence).

Ramond, Elodie, Gael Gesbert, Ida Chiara Guerrera, et al. 2015. “Importance of Host Cell Arginine Uptake in Francisella Phagosomal Escape and Ribosomal Protein Amounts.” Mol. Cell. Proteomics 14 (4): 870–81.

---

1. The file is locally cached
